PRODUCTS / Square Hollow Sections
Square Hollow Sections (SHS)
SHS (square hollow section) is square steel tube to AS/NZS 1163, used for posts, frames and light structural work across the Gold Coast.
Sizes
20×20 to 250×250
Finishes
Painted · Galv · DuraGal
Lengths
6.5m or 8.0m
Cut to length
On request
SHS is the workhorse of Gold Coast steelwork. It's a square tube — strong every way you turn it, easy to weld, easy to bolt, and it looks tidy under paint or powder coat. We stock it from light 20×20 hobby sizes right up to heavy 250×250 structural posts.
Around here it ends up in everything: patio posts, carports, pergolas, sheds, gate frames, balustrades and light commercial framing. Builders take it home in their utes, fabricators order pallet lots, owner-builders walk in with a sketch on a beer coaster — all of it's fine with us.
Walk into the yard at Burleigh Heads and have a look, or send us a list — we'll quote it the same day.
Common applications
What it's used for.
- Patio and pergola posts
- Carport and shed frames
- Gate and fence frames
- Balustrade uprights
- Mezzanine and stair stringers
- Light structural posts and beams
- Trailer and machinery framing
Sizes we carry
Standard SHS sizes — pulled straight from the rack.
marks the sizes we move most often. Other sizes available on request.
See full size reference → for every standard section we stock.
Stock varies by size. Call us before you drive to confirm what's on the shelf today.
Standard SHS sizes per AS/NZS 1163, Grade C350L0. Stocked items vary — call us for what's on the shelf.
Marshall Steel — Square Hollow Sections (SHS)
Standard SHS sizes per AS/NZS 1163, Grade C350L0. Stocked items vary — call us for what's on the shelf. · 9 Stevenson Court, Burleigh Heads QLD · 07 5576 6037
| Size (mm) | Wall thickness (mm) | Mass (kg/m) | Standard length (m) | |
|---|---|---|---|---|
| 13 × 13 | 1.6 | 0.56 | 6.5 | |
| 13 × 13 | 1.8 | 0.63 | 6.5 | |
| 16 × 16 | 1.6 | 0.72 | 6.5 | |
| 16 × 16 | 2.0 | 0.88 | 6.5 | |
| 20 × 20 | 1.6 | 0.92 | 6.5 | |
| 20 × 20 | 2.0 | 1.13 | 6.5 | |
| 20 × 20 | 2.5 | 1.36 | 6.5 | |
| 25 × 25 | 1.6 | 1.18 | 6.5 | |
| 25 × 25 | 2.0 | 1.44 | 6.5 | |
| 25 × 25 | 2.5 | 1.77 | 6.5 | |
| 25 × 25 | 3.0 | 2.07 | 6.5 | |
| 30 × 30 | 1.6 | 1.43 | 8.0 | |
| 30 × 30 | 2.0 | 1.76 | 8.0 | |
| 30 × 30 | 2.5 | 2.16 | 8.0 | |
| 30 × 30 | 3.0 | 2.55 | 8.0 | |
| 35 × 35 | 1.6 | 1.68 | 8.0 | |
| 35 × 35 | 2.0 | 2.07 | 8.0 | |
| 35 × 35 | 2.5 | 2.55 | 8.0 | |
| 35 × 35 | 3.0 | 3.02 | 8.0 | |
| 40 × 40 | 1.6 | 1.93 | 8.0 | |
| 40 × 40 | 2.0 | 2.39 | 8.0 | |
| 40 × 40 | 2.5 | 2.94 | 8.0 | |
| 40 × 40 | 3.0 | 3.49 | 8.0 | |
| 40 × 40 | 4.0 | 4.52 | 8.0 | |
| 50 × 50 | 1.6 | 2.43 | 8.0 | |
| 50 × 50 | 2.0 | 3.01 | 8.0 | |
| 50 × 50 | 2.5 | 3.73 | 8.0 | |
| 50 × 50 | 3.0 | 4.43 | 8.0 | |
| 50 × 50 | 4.0 | 5.78 | 8.0 | |
| 50 × 50 | 5.0 | 7.06 | 8.0 | |
| 50 × 50 | 6.0 | 8.29 | 8.0 | |
| 65 × 65 | 2.0 | 3.96 | 8.0 | |
| 65 × 65 | 2.5 | 4.91 | 8.0 | |
| 65 × 65 | 3.0 | 5.84 | 8.0 | |
| 65 × 65 | 4.0 | 7.66 | 8.0 | |
| 65 × 65 | 5.0 | 9.42 | 8.0 | |
| 65 × 65 | 6.0 | 11.1 | 8.0 | |
| 75 × 75 | 2.0 | 4.58 | 8.0 | |
| 75 × 75 | 2.5 | 5.69 | 8.0 | |
| 75 × 75 | 3.0 | 6.78 | 8.0 | |
| 75 × 75 | 4.0 | 8.92 | 8.0 | |
| 75 × 75 | 5.0 | 11.0 | 8.0 | |
| 75 × 75 | 6.0 | 13.0 | 8.0 | |
| 89 × 89 | 3.5 | 9.40 | 8.0 | |
| 89 × 89 | 4.0 | 10.6 | 8.0 | |
| 89 × 89 | 5.0 | 13.2 | 8.0 | |
| 89 × 89 | 6.0 | 15.6 | 8.0 | |
| 100 × 100 | 3.0 | 9.14 | 8.0 | |
| 100 × 100 | 3.5 | 10.6 | 8.0 | |
| 100 × 100 | 4.0 | 12.1 | 8.0 | |
| 100 × 100 | 5.0 | 14.9 | 8.0 | |
| 100 × 100 | 6.0 | 17.7 | 8.0 | |
| 100 × 100 | 8.0 | 23.1 | 8.0 | |
| 100 × 100 | 9.0 | 25.7 | 8.0 | |
| 125 × 125 | 4.0 | 15.2 | 8.0 | |
| 125 × 125 | 5.0 | 18.8 | 8.0 | |
| 125 × 125 | 6.0 | 22.4 | 8.0 | |
| 125 × 125 | 8.0 | 29.4 | 8.0 | |
| 125 × 125 | 9.0 | 32.8 | 8.0 | |
| 150 × 150 | 5.0 | 22.8 | 8.0 | |
| 150 × 150 | 6.0 | 27.1 | 8.0 | |
| 150 × 150 | 8.0 | 35.7 | 8.0 | |
| 150 × 150 | 9.0 | 39.8 | 8.0 | |
| 150 × 150 | 10.0 | 44.0 | 8.0 | |
| 200 × 200 | 5.0 | 30.6 | 8.0 | |
| 200 × 200 | 6.0 | 36.5 | 8.0 | |
| 200 × 200 | 8.0 | 48.2 | 8.0 | |
| 200 × 200 | 9.0 | 54.0 | 8.0 | |
| 200 × 200 | 10.0 | 59.7 | 8.0 | |
| 200 × 200 | 12.5 | 73.6 | 8.0 | |
| 250 × 250 | 6.0 | 46.0 | 8.0 | |
| 250 × 250 | 8.0 | 60.8 | 8.0 | |
| 250 × 250 | 9.0 | 68.1 | 8.0 | |
| 250 × 250 | 10.0 | 75.4 | 8.0 | |
| 250 × 250 | 12.5 | 93.2 | 8.0 |
Extended lengths (9m / 10m / 12m) available in select sizes and finishes — contact us to confirm stock.
Got your size? Get a quote.
Quote my SHSYellow-dot sizes are typical stock at the Burleigh Heads yard. Other sizes available on request — usually same-week.
Steel weight calculator
Roughly how much will your steel weigh? Get a quick estimate before you call.
Cross-section (mm²)
1,136
Mass per metre (kg/m)
8.92
Per piece (kg)
53.51
Total mass (kg)
53.51
Estimate only — based on nominal sizes and 7850 kg/m³ density. Actual mass varies by 2–3% with manufacturing tolerances. Call us for exact spec.
Finishes
How we finish it.
Painted black is what most jobs run on. Hot-dip galv is the go for outdoor and coastal — the salt air down the strip eats unprotected steel. DuraGal is in-line galvanised tube with a clear organic coating, neat finish, paints up nicely.
- Painted black mild steel
- Hot-dipped galvanised (after fabrication, to AS/NZS 4680)
- DuraGal — in-line galv with clear coat
- Primed
All SHS to AS/NZS 1163, Grade C350L0 typical.
Cut to length & fabricated on site.
We cut SHS to your sizes on the bandsaw and fabricate from this range in the workshop — drilling, coping, welding, hole-punching. See the fabrication service →
FAQ
Common questions on SHS.
- What grade is your SHS?
- All our SHS is C350L0 to AS/NZS 1163. That's the standard structural grade in Australia — 350 MPa minimum yield, suitable for engineered work, weldable, and stamped where required.
- Do you carry galvanised SHS?
- Yes — both DuraGal (in-line galv with a clear coat) in the popular sizes, and we send larger jobs out for hot-dip galv after fabrication. Tell us what the job is and we'll point you at the right finish.
- Can you cut SHS to length?
- Yes. Cut-to-length is a standard service at the yard — send through a cut list and we'll have it ready to pick up or load on the truck.
- What's the smallest SHS you stock?
- 20 × 20 × 1.6 wall. Below that you're into RHS strap or flat bar territory — happy to help work out what suits.
- Do you deliver SHS to the Gold Coast, Tweed Heads and Northern NSW?
- Yes — we deliver SHS across the Gold Coast, Tweed Heads and Northern NSW. The crane truck handles full 7.5m bundles onto site.
- What's the longest SHS you can supply?
- Standard stock length is 7.5m off the rack. Longer mill lengths up to 12m are on special order — tell us the section and we'll quote the lead time.
- Can you fabricate from SHS?
- Yes — drilling, coping, hole-punching and welding from SHS is part of our fabrication service. Send a sketch or drawing and we'll quote the finished part.
- How much does SHS cost on the Gold Coast?
- Price depends on the size, wall thickness, finish and length. Send us a quick list and we'll quote it same day from Burleigh Heads.
Useful next steps
More on SHS & related work.
- Full steel size reference — every section we stock in one printable page.
- Fabrication & cut-to-length services — what we can do for you in the workshop.
- Visit the Burleigh Heads yard — directions, hours and what to expect.
- Read our guides — choosing finishes, planning fabrication and more.
Related products
Also in the yard.

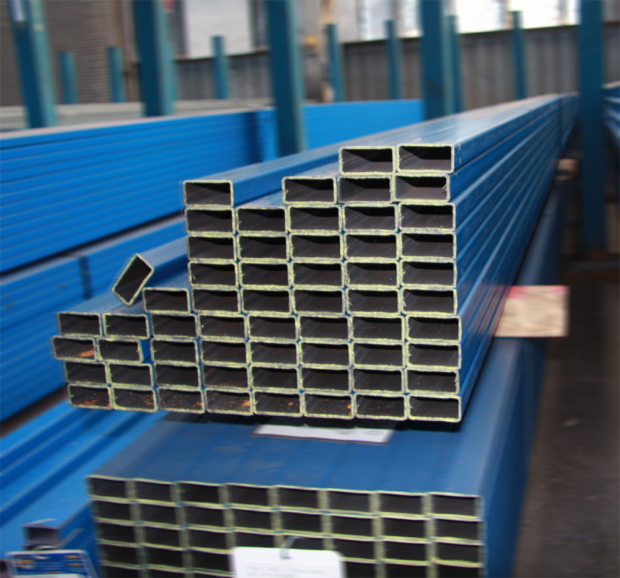

Rectangular Hollow Sections (RHS)
Rectangular tube — strong one way, neat the other. Lintels, frames, trailers.
View RHS sizes
Steel Pipe
Round pipe — galvanised and black, light to medium wall. Handrails, posts, fencing.
View Pipe sizes

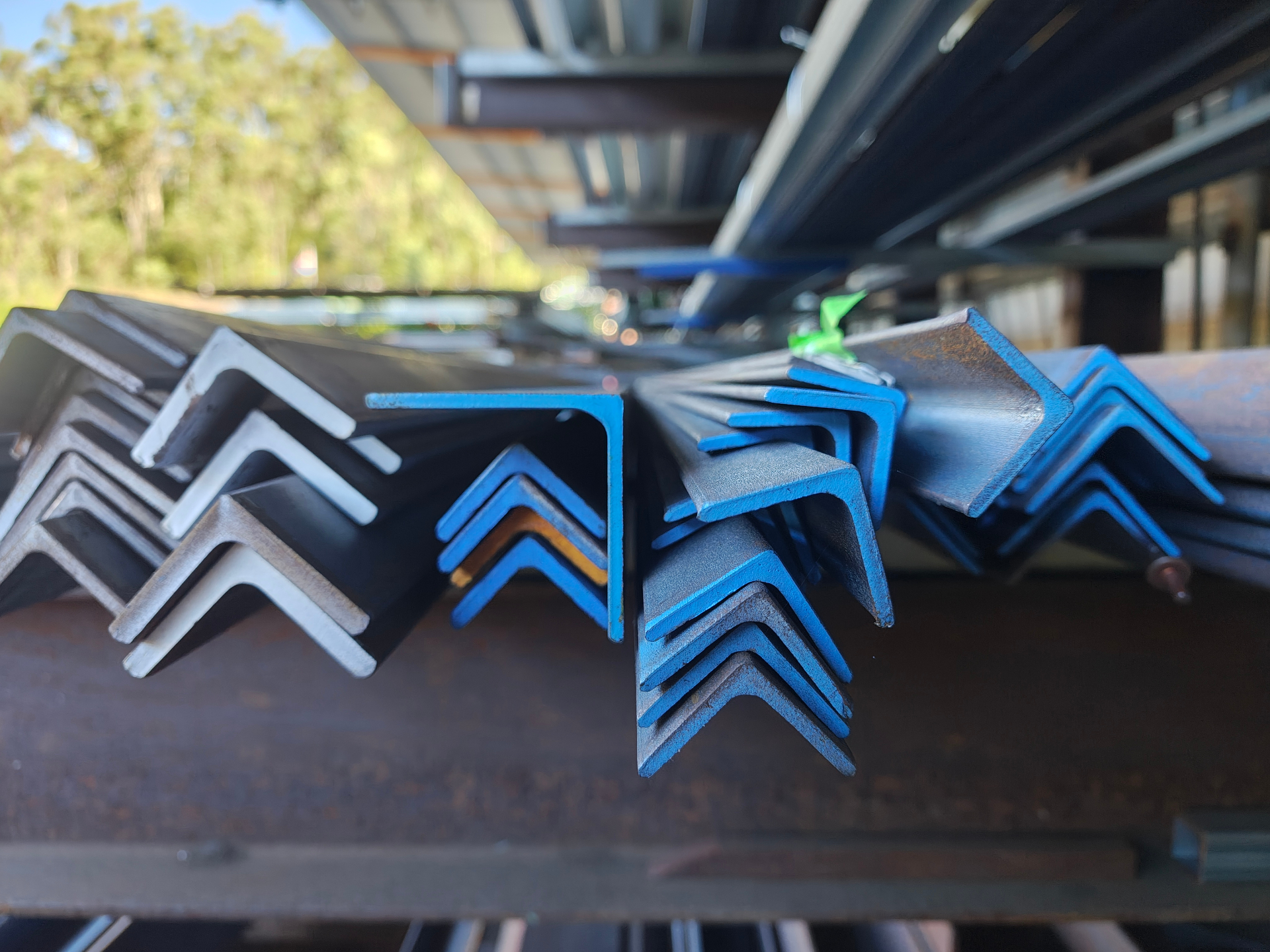

Mild Steel Angle
Equal and unequal angle — brackets, edges, frames, supports.
View Angle sizesNeed this for a job?
Let's quote your SHS.
Send sizes, a sketch or a photo and we'll get back to you — usually same day.
Sizes shown are typical stock at the Burleigh Heads yard. Other sizes available on request — call us on 07 5576 6037 or send through a list.
