PRODUCTS / Universal Beams & Columns
Universal Beams & Columns (UB / UC)

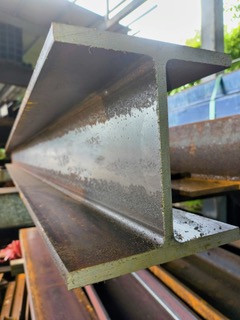

Universal beams (UB) and universal columns (UC) are I-shaped hot-rolled structural sections to AS/NZS 3679.1, used as patio beams, lintels and columns across the Gold Coast.
Beams
150UB to 610UB
Columns
100UC to 310UC
Grade
300 — AS/NZS 3679.1
Delivery
Crane truck
UB and UC are the structural backbones of most steel-framed buildings on the Gold Coast. UB (Universal Beam) is deep and narrow — built to span horizontally. UC (Universal Column) is closer to square — built to take vertical load.
Patio beams over the back deck, lintels over garage openings, the goal-posts that hold up a verandah, the columns under a mezzanine — it's all UB and UC work. Engineered jobs only: this isn't pick-a-size territory, your engineer or builder will specify the section.
We can deliver onto site with the crane truck — handy when you've got a 610UB125 to land in the right spot.
Common applications
What it's used for.
- Patio and verandah beams
- Garage door lintels (heavier spans)
- Goal-post frames over openings
- Mezzanine and floor beams
- Column posts in commercial work
- Carport and shed beams
- Industrial portal frames
Sizes we carry
Standard UB / UC sizes — pulled straight from the rack.
marks the sizes we move most often. Other sizes available on request.
See full size reference → for every standard section we stock.
Stock varies by size. Call us before you drive to confirm what's on the shelf today.
Universal Beams (UB) per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf.
Marshall Steel — Universal Beams & Columns (UB / UC)
Universal Beams (UB) per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf. · 9 Stevenson Court, Burleigh Heads QLD · 07 5576 6037
| Designation | Depth (mm) | Flange width (mm) | Web thickness (mm) | Mass (kg/m) | Standard length (m) | |
|---|---|---|---|---|---|---|
| 150UB14 | 150 | 75 | 5.0 | 14.0 | 9.0 / 12.0 | |
| 180UB16 | 173 | 90 | 5.0 | 16.1 | 9.0 / 12.0 | |
| 180UB18 | 175 | 90 | 5.0 | 18.1 | 9.0 / 12.0 | |
| 200UB18 | 198 | 99 | 4.5 | 18.2 | 9.0 / 12.0 | |
| 200UB22 | 202 | 133 | 5.0 | 22.3 | 9.0 / 12.0 | |
| 200UB25 | 203 | 133 | 5.8 | 25.4 | 9.0 / 12.0 | |
| 200UB29 | 207 | 134 | 6.3 | 29.8 | 9.0 / 12.0 | |
| 250UB25 | 248 | 124 | 5.0 | 25.7 | 9.0 / 12.0 | |
| 250UB31 | 252 | 146 | 6.1 | 31.4 | 9.0 / 12.0 | |
| 250UB37 | 256 | 146 | 6.4 | 37.3 | 9.0 / 12.0 | |
| 310UB32 | 298 | 149 | 5.5 | 32.0 | 9.0 / 12.0 | |
| 310UB40 | 304 | 165 | 6.1 | 40.4 | 9.0 / 12.0 | |
| 310UB46 | 307 | 166 | 6.7 | 46.2 | 9.0 / 12.0 | |
| 360UB44 | 352 | 171 | 6.9 | 44.7 | 9.0 / 12.0 | |
| 360UB50 | 356 | 171 | 7.3 | 50.7 | 9.0 / 12.0 | |
| 360UB56 | 359 | 172 | 8.0 | 56.7 | 9.0 / 12.0 | |
| 410UB53 | 403 | 178 | 7.6 | 53.7 | 9.0 / 12.0 | |
| 410UB59 | 406 | 178 | 7.8 | 59.7 | 9.0 / 12.0 | |
| 410UB74 | 413 | 180 | 9.7 | 74.3 | 9.0 / 12.0 | |
| 460UB67 | 454 | 190 | 8.5 | 67.1 | 9.0 / 12.0 | |
| 460UB74 | 457 | 190 | 9.1 | 74.6 | 9.0 / 12.0 | |
| 460UB82 | 460 | 191 | 9.9 | 82.1 | 9.0 / 12.0 | |
| 530UB82 | 528 | 209 | 9.6 | 82.0 | 9.0 / 12.0 | |
| 530UB92 | 533 | 209 | 10.2 | 92.4 | 9.0 / 12.0 | |
| 610UB101 | 602 | 228 | 10.6 | 101 | 9.0 / 12.0 | |
| 610UB113 | 607 | 228 | 11.2 | 113 | 9.0 / 12.0 | |
| 610UB125 | 612 | 229 | 11.9 | 125 | 9.0 / 12.0 |
150UB14
Designation
- Depth (mm)
- 150
- Flange width (mm)
- 75
- Web thickness (mm)
- 5.0
- Mass (kg/m)
- 14.0
- Standard length (m)
- 9.0 / 12.0
180UB16
Designation
- Depth (mm)
- 173
- Flange width (mm)
- 90
- Web thickness (mm)
- 5.0
- Mass (kg/m)
- 16.1
- Standard length (m)
- 9.0 / 12.0
180UB18
Designation
- Depth (mm)
- 175
- Flange width (mm)
- 90
- Web thickness (mm)
- 5.0
- Mass (kg/m)
- 18.1
- Standard length (m)
- 9.0 / 12.0
200UB18
Designation
- Depth (mm)
- 198
- Flange width (mm)
- 99
- Web thickness (mm)
- 4.5
- Mass (kg/m)
- 18.2
- Standard length (m)
- 9.0 / 12.0
200UB22
Designation
- Depth (mm)
- 202
- Flange width (mm)
- 133
- Web thickness (mm)
- 5.0
- Mass (kg/m)
- 22.3
- Standard length (m)
- 9.0 / 12.0
200UB25
Designation
- Depth (mm)
- 203
- Flange width (mm)
- 133
- Web thickness (mm)
- 5.8
- Mass (kg/m)
- 25.4
- Standard length (m)
- 9.0 / 12.0
200UB29
Designation
- Depth (mm)
- 207
- Flange width (mm)
- 134
- Web thickness (mm)
- 6.3
- Mass (kg/m)
- 29.8
- Standard length (m)
- 9.0 / 12.0
250UB25
Designation
- Depth (mm)
- 248
- Flange width (mm)
- 124
- Web thickness (mm)
- 5.0
- Mass (kg/m)
- 25.7
- Standard length (m)
- 9.0 / 12.0
250UB31
Designation
- Depth (mm)
- 252
- Flange width (mm)
- 146
- Web thickness (mm)
- 6.1
- Mass (kg/m)
- 31.4
- Standard length (m)
- 9.0 / 12.0
250UB37
Designation
- Depth (mm)
- 256
- Flange width (mm)
- 146
- Web thickness (mm)
- 6.4
- Mass (kg/m)
- 37.3
- Standard length (m)
- 9.0 / 12.0
310UB32
Designation
- Depth (mm)
- 298
- Flange width (mm)
- 149
- Web thickness (mm)
- 5.5
- Mass (kg/m)
- 32.0
- Standard length (m)
- 9.0 / 12.0
310UB40
Designation
- Depth (mm)
- 304
- Flange width (mm)
- 165
- Web thickness (mm)
- 6.1
- Mass (kg/m)
- 40.4
- Standard length (m)
- 9.0 / 12.0
310UB46
Designation
- Depth (mm)
- 307
- Flange width (mm)
- 166
- Web thickness (mm)
- 6.7
- Mass (kg/m)
- 46.2
- Standard length (m)
- 9.0 / 12.0
360UB44
Designation
- Depth (mm)
- 352
- Flange width (mm)
- 171
- Web thickness (mm)
- 6.9
- Mass (kg/m)
- 44.7
- Standard length (m)
- 9.0 / 12.0
360UB50
Designation
- Depth (mm)
- 356
- Flange width (mm)
- 171
- Web thickness (mm)
- 7.3
- Mass (kg/m)
- 50.7
- Standard length (m)
- 9.0 / 12.0
360UB56
Designation
- Depth (mm)
- 359
- Flange width (mm)
- 172
- Web thickness (mm)
- 8.0
- Mass (kg/m)
- 56.7
- Standard length (m)
- 9.0 / 12.0
410UB53
Designation
- Depth (mm)
- 403
- Flange width (mm)
- 178
- Web thickness (mm)
- 7.6
- Mass (kg/m)
- 53.7
- Standard length (m)
- 9.0 / 12.0
410UB59
Designation
- Depth (mm)
- 406
- Flange width (mm)
- 178
- Web thickness (mm)
- 7.8
- Mass (kg/m)
- 59.7
- Standard length (m)
- 9.0 / 12.0
410UB74
Designation
- Depth (mm)
- 413
- Flange width (mm)
- 180
- Web thickness (mm)
- 9.7
- Mass (kg/m)
- 74.3
- Standard length (m)
- 9.0 / 12.0
460UB67
Designation
- Depth (mm)
- 454
- Flange width (mm)
- 190
- Web thickness (mm)
- 8.5
- Mass (kg/m)
- 67.1
- Standard length (m)
- 9.0 / 12.0
460UB74
Designation
- Depth (mm)
- 457
- Flange width (mm)
- 190
- Web thickness (mm)
- 9.1
- Mass (kg/m)
- 74.6
- Standard length (m)
- 9.0 / 12.0
460UB82
Designation
- Depth (mm)
- 460
- Flange width (mm)
- 191
- Web thickness (mm)
- 9.9
- Mass (kg/m)
- 82.1
- Standard length (m)
- 9.0 / 12.0
530UB82
Designation
- Depth (mm)
- 528
- Flange width (mm)
- 209
- Web thickness (mm)
- 9.6
- Mass (kg/m)
- 82.0
- Standard length (m)
- 9.0 / 12.0
530UB92
Designation
- Depth (mm)
- 533
- Flange width (mm)
- 209
- Web thickness (mm)
- 10.2
- Mass (kg/m)
- 92.4
- Standard length (m)
- 9.0 / 12.0
610UB101
Designation
- Depth (mm)
- 602
- Flange width (mm)
- 228
- Web thickness (mm)
- 10.6
- Mass (kg/m)
- 101
- Standard length (m)
- 9.0 / 12.0
610UB113
Designation
- Depth (mm)
- 607
- Flange width (mm)
- 228
- Web thickness (mm)
- 11.2
- Mass (kg/m)
- 113
- Standard length (m)
- 9.0 / 12.0
610UB125
Designation
- Depth (mm)
- 612
- Flange width (mm)
- 229
- Web thickness (mm)
- 11.9
- Mass (kg/m)
- 125
- Standard length (m)
- 9.0 / 12.0
Additional standard lengths available on request — contact us to confirm stock.
Got your size? Get a quote.
Quote my UB / UCUniversal Columns (UC) per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf.
Marshall Steel — Universal Beams & Columns (UB / UC)
Universal Columns (UC) per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf. · 9 Stevenson Court, Burleigh Heads QLD · 07 5576 6037
| Designation | Depth (mm) | Flange width (mm) | Web thickness (mm) | Mass (kg/m) | Standard length (m) | |
|---|---|---|---|---|---|---|
| 100UC14.8 | 97 | 99 | 5.0 | 14.8 | 9.0 / 12.0 | |
| 150UC23.4 | 152 | 152 | 6.1 | 23.4 | 9.0 / 12.0 | |
| 150UC30.0 | 157 | 153 | 6.6 | 30.0 | 9.0 / 12.0 | |
| 150UC37.2 | 162 | 154 | 8.1 | 37.2 | 9.0 / 12.0 | |
| 200UC46.2 | 203 | 203 | 7.3 | 46.2 | 9.0 / 12.0 | |
| 200UC52.2 | 206 | 204 | 8.0 | 52.2 | 9.0 / 12.0 | |
| 200UC59.5 | 210 | 205 | 9.3 | 59.5 | 9.0 / 12.0 | |
| 250UC72.9 | 254 | 254 | 8.6 | 72.9 | 9.0 / 12.0 | |
| 250UC89.5 | 260 | 256 | 10.5 | 89.5 | 9.0 / 12.0 | |
| 310UC96.8 | 308 | 305 | 9.9 | 96.8 | 9.0 / 12.0 | |
| 310UC118 | 315 | 307 | 11.9 | 118 | 9.0 / 12.0 | |
| 310UC137 | 321 | 309 | 13.8 | 137 | 9.0 / 12.0 | |
| 310UC158 | 327 | 311 | 15.7 | 158 | 9.0 / 12.0 |
100UC14.8
Designation
- Depth (mm)
- 97
- Flange width (mm)
- 99
- Web thickness (mm)
- 5.0
- Mass (kg/m)
- 14.8
- Standard length (m)
- 9.0 / 12.0
150UC23.4
Designation
- Depth (mm)
- 152
- Flange width (mm)
- 152
- Web thickness (mm)
- 6.1
- Mass (kg/m)
- 23.4
- Standard length (m)
- 9.0 / 12.0
150UC30.0
Designation
- Depth (mm)
- 157
- Flange width (mm)
- 153
- Web thickness (mm)
- 6.6
- Mass (kg/m)
- 30.0
- Standard length (m)
- 9.0 / 12.0
150UC37.2
Designation
- Depth (mm)
- 162
- Flange width (mm)
- 154
- Web thickness (mm)
- 8.1
- Mass (kg/m)
- 37.2
- Standard length (m)
- 9.0 / 12.0
200UC46.2
Designation
- Depth (mm)
- 203
- Flange width (mm)
- 203
- Web thickness (mm)
- 7.3
- Mass (kg/m)
- 46.2
- Standard length (m)
- 9.0 / 12.0
200UC52.2
Designation
- Depth (mm)
- 206
- Flange width (mm)
- 204
- Web thickness (mm)
- 8.0
- Mass (kg/m)
- 52.2
- Standard length (m)
- 9.0 / 12.0
200UC59.5
Designation
- Depth (mm)
- 210
- Flange width (mm)
- 205
- Web thickness (mm)
- 9.3
- Mass (kg/m)
- 59.5
- Standard length (m)
- 9.0 / 12.0
250UC72.9
Designation
- Depth (mm)
- 254
- Flange width (mm)
- 254
- Web thickness (mm)
- 8.6
- Mass (kg/m)
- 72.9
- Standard length (m)
- 9.0 / 12.0
250UC89.5
Designation
- Depth (mm)
- 260
- Flange width (mm)
- 256
- Web thickness (mm)
- 10.5
- Mass (kg/m)
- 89.5
- Standard length (m)
- 9.0 / 12.0
310UC96.8
Designation
- Depth (mm)
- 308
- Flange width (mm)
- 305
- Web thickness (mm)
- 9.9
- Mass (kg/m)
- 96.8
- Standard length (m)
- 9.0 / 12.0
310UC118
Designation
- Depth (mm)
- 315
- Flange width (mm)
- 307
- Web thickness (mm)
- 11.9
- Mass (kg/m)
- 118
- Standard length (m)
- 9.0 / 12.0
310UC137
Designation
- Depth (mm)
- 321
- Flange width (mm)
- 309
- Web thickness (mm)
- 13.8
- Mass (kg/m)
- 137
- Standard length (m)
- 9.0 / 12.0
310UC158
Designation
- Depth (mm)
- 327
- Flange width (mm)
- 311
- Web thickness (mm)
- 15.7
- Mass (kg/m)
- 158
- Standard length (m)
- 9.0 / 12.0
Additional standard lengths available on request — contact us to confirm stock.
Got your size? Get a quote.
Quote my UB / UCYellow-dot sizes are typical stock at the Burleigh Heads yard. Other sizes available on request — usually same-week.
Finishes
How we finish it.
Supplied black. Most structural jobs go straight to prime-and-paint, or out for hot-dip galv for coastal and exposed work.
- Black hot-rolled
- Hot-dipped galvanised after fabrication
- Primed
All UB and UC to AS/NZS 3679.1, Grade 300.
Cut to length & fabricated on site.
We cut UB / UC to your sizes on the bandsaw and fabricate from this range in the workshop — drilling, coping, welding, hole-punching. See the fabrication service →
FAQ
Common questions on UB / UC.
- What's the difference between UB and UC?
- UB (Universal Beam) is deeper than it is wide — designed to span and carry bending loads. UC (Universal Column) is closer to square — designed to carry vertical compression. Both are I-shaped, but the proportions are tuned to the job.
- How do I read a designation like 250UB37.3?
- First number is the nominal depth in mm (around 250mm), then UB (Universal Beam), then the mass per metre in kg/m (37.3 kg/m). So 250UB37.3 = ~250mm-deep beam weighing 37.3 kg per metre.
- Can you deliver beams to site?
- Yes — the crane truck is set up for it. Tell us the size, the address and where you want it landed and we'll work it out.
- Do you cut and drill beams for fabrication?
- Yes — bandsaw cuts, hole punching and coping are all part of the fabrication service. Send a drawing and we'll quote.
- Do you deliver universal beams to Gold Coast sites?
- Yes — the crane truck is set up to lift and land beams onto patio posts, garage openings and slab edges across the Gold Coast, Tweed Heads and Northern NSW.
- What's the heaviest UB you stock?
- 610UB125 — 612mm deep at 125 kg/m — is the heaviest off the rack. Heavier specials are on order from the mill.
- Can you fabricate from UB and UC?
- Yes — bandsaw cutting, hole punching, coping, end plates and welding are part of the fab shop service. Send a drawing and we'll quote.
- How much does a universal beam cost?
- Price depends on the designation (e.g. 250UB37.3), length and finish. Send the spec and we'll quote same day.
Useful next steps
More on UB / UC & related work.
- Full steel size reference — every section we stock in one printable page.
- Fabrication & cut-to-length services — what we can do for you in the workshop.
- Visit the Burleigh Heads yard — directions, hours and what to expect.
- Read our guides — choosing finishes, planning fabrication and more.
Related products
Also in the yard.
Parallel Flange Channel (PFC)
C-section structural channel — lintels, edges, bearers, framing.
View PFC Channel sizes
Square Hollow Sections (SHS)
Square tube — painted, galvanised and DuraGal. Patios, posts, gates, frames.
View SHS sizes

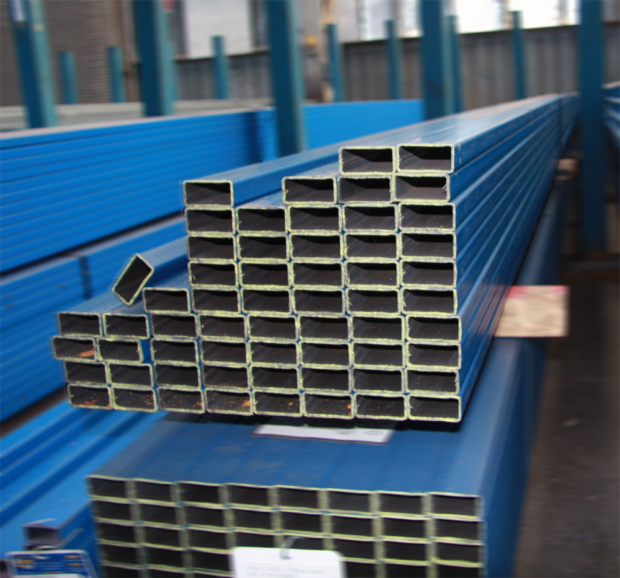

Rectangular Hollow Sections (RHS)
Rectangular tube — strong one way, neat the other. Lintels, frames, trailers.
View RHS sizesNeed this for a job?
Let's quote your UB / UC.
Send sizes, a sketch or a photo and we'll get back to you — usually same day.
Sizes shown are typical stock at the Burleigh Heads yard. Other sizes available on request — call us on 07 5576 6037 or send through a list.
