PRODUCTS / Mild Steel Angle

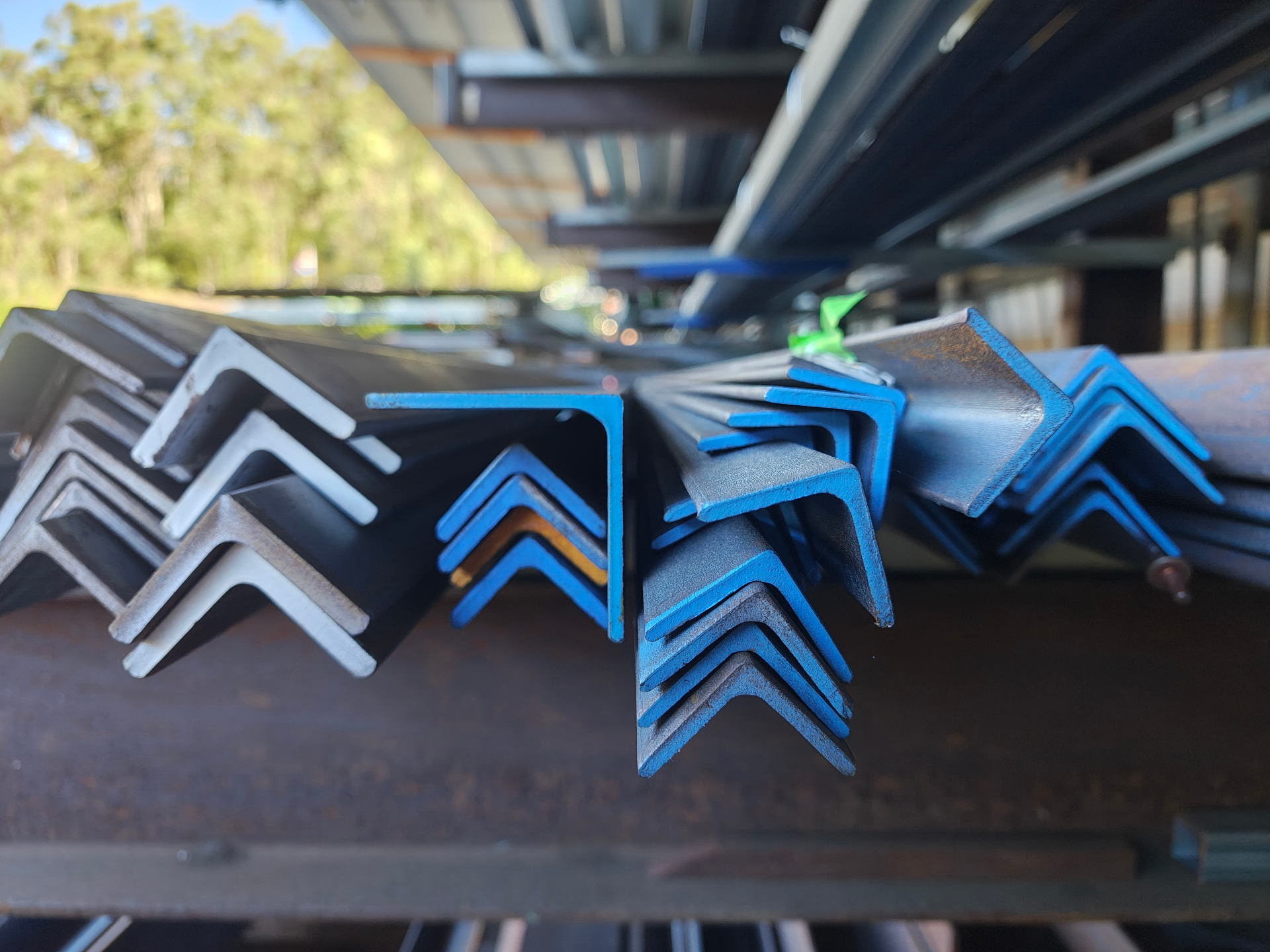

Mild Steel Angle
Steel angle is hot-rolled L-section bar to AS/NZS 3679.1, supplied in equal and unequal legs for brackets, edges and light framing across the Gold Coast.
Equal angle
20×20 to 150×150
Unequal angle
75×50 to 150×100
Grade
300 — AS/NZS 3679.1
Lengths
6.0m · 7.5m · 9.0m
Angle is the bracket-maker's best friend. Two flat legs at 90° gives you something to fix to on both sides — perfect for shelving, edges, corner protectors, light frames and a thousand other little jobs.
We stock equal angle (both legs the same width) in all the popular sizes, plus the common unequal angles for when one leg needs to be deeper than the other. All hot-rolled mild steel, Grade 300, ready to drill, weld or bolt.
Off-cuts of angle turn up in the off-cut bin all the time — worth a dig if you only need a short length.
Common applications
What it's used for.
- Shelving and rack brackets
- Door and window frames
- Edge protection on slabs and steps
- Light frame and gusset work
- Trailer toolbox and tray edges
- Lintels over small openings
- Fence and gate corner braces
Sizes we carry
Standard Angle sizes — pulled straight from the rack.
marks the sizes we move most often. Other sizes available on request.
See full size reference → for every standard section we stock.
Stock varies by size. Call us before you drive to confirm what's on the shelf today.
Equal Angle sizes per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf.
Marshall Steel — Mild Steel Angle
Equal Angle sizes per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf. · 9 Stevenson Court, Burleigh Heads QLD · 07 5576 6037
| Size (mm) | Thickness (mm) | Mass (kg/m) | Standard length (m) | |
|---|---|---|---|---|
| 20 × 20 | 3.0 | 0.87 | 6.0 | |
| 25 × 25 | 3.0 | 1.12 | 7.5 | |
| 25 × 25 | 5.0 | 1.65 | 7.5 | |
| 25 × 25 | 6.0 | 2.08 | 7.5 | |
| 30 × 30 | 3.0 | 1.36 | 7.5 | |
| 30 × 30 | 5.0 | 2.08 | 7.5 | |
| 30 × 30 | 6.0 | 2.56 | 7.5 | |
| 40 × 40 | 3.0 | 1.83 | 7.5 | |
| 40 × 40 | 5.0 | 2.86 | 7.5 | |
| 40 × 40 | 6.0 | 3.51 | 7.5 | |
| 45 × 45 | 3.0 | 2.07 | 7.5 | |
| 45 × 45 | 5.0 | 3.27 | 7.5 | |
| 45 × 45 | 6.0 | 3.97 | 7.5 | |
| 50 × 50 | 3.0 | 2.31 | 7.5 | |
| 50 × 50 | 5.0 | 3.68 | 7.5 | |
| 50 × 50 | 6.0 | 4.46 | 7.5 | |
| 50 × 50 | 8.0 | 5.84 | 7.5 | |
| 65 × 65 | 5.0 | 4.93 | 9.0 | |
| 65 × 65 | 6.0 | 5.91 | 9.0 | |
| 65 × 65 | 8.0 | 7.66 | 9.0 | |
| 65 × 65 | 10.0 | 9.45 | 9.0 | |
| 75 × 75 | 5.0 | 5.72 | 9.0 | |
| 75 × 75 | 6.0 | 6.85 | 9.0 | |
| 75 × 75 | 8.0 | 8.92 | 9.0 | |
| 75 × 75 | 10.0 | 11.00 | 9.0 | |
| 90 × 90 | 6.0 | 8.22 | 9.0 | |
| 90 × 90 | 8.0 | 10.60 | 9.0 | |
| 90 × 90 | 10.0 | 13.40 | 9.0 | |
| 100 × 100 | 6.0 | 9.16 | 9.0 | |
| 100 × 100 | 8.0 | 12.20 | 9.0 | |
| 100 × 100 | 10.0 | 14.90 | 9.0 | |
| 100 × 100 | 12.0 | 17.70 | 9.0 | |
| 125 × 125 | 8.0 | 15.00 | 9.0 | |
| 125 × 125 | 10.0 | 19.10 | 9.0 | |
| 125 × 125 | 12.0 | 22.50 | 9.0 | |
| 125 × 125 | 16.0 | 29.10 | 9.0 | |
| 150 × 150 | 10.0 | 22.50 | 9.0 | |
| 150 × 150 | 12.0 | 27.30 | 9.0 | |
| 150 × 150 | 16.0 | 35.50 | 9.0 | |
| 150 × 150 | 19.0 | 41.40 | 9.0 | |
| 200 × 200 | 13.0 | 39.70 | 9.0 | |
| 200 × 200 | 16.0 | 48.50 | 9.0 | |
| 200 × 200 | 18.0 | 54.20 | 9.0 | |
| 200 × 200 | 20.0 | 59.90 | 9.0 | |
| 200 × 200 | 26.0 | 77.00 | 9.0 |
Some listed sizes may not be available in 12m lengths — contact us to confirm.
Got your size? Get a quote.
Quote my AngleUnequal Angle sizes per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf.
Marshall Steel — Mild Steel Angle
Unequal Angle sizes per AS/NZS 3679.1, Grade 300. Stocked items vary — call us for what's on the shelf. · 9 Stevenson Court, Burleigh Heads QLD · 07 5576 6037
| Size (mm) | Thickness (mm) | Mass (kg/m) | Standard length (m) | |
|---|---|---|---|---|
| 75 × 50 | 5.0 | 4.74 | 9.0 | |
| 75 × 50 | 6.0 | 5.66 | 9.0 | |
| 75 × 50 | 8.0 | 7.36 | 9.0 | |
| 100 × 75 | 6.0 | 7.92 | 9.0 | |
| 100 × 75 | 8.0 | 10.40 | 9.0 | |
| 100 × 75 | 10.0 | 12.80 | 9.0 | |
| 125 × 75 | 8.0 | 12.20 | 9.0 | |
| 125 × 75 | 10.0 | 15.00 | 9.0 | |
| 125 × 75 | 12.0 | 17.70 | 9.0 | |
| 150 × 90 | 8.0 | 14.30 | 9.0 | |
| 150 × 90 | 10.0 | 17.70 | 9.0 | |
| 150 × 90 | 12.0 | 21.00 | 9.0 | |
| 150 × 100 | 10.0 | 18.70 | 9.0 | |
| 150 × 100 | 12.0 | 22.50 | 9.0 |
Some listed sizes may not be available in 12m lengths — contact us to confirm.
Got your size? Get a quote.
Quote my AngleYellow-dot sizes are typical stock at the Burleigh Heads yard. Other sizes available on request — usually same-week.
Finishes
How we finish it.
Standard supply is black hot-rolled. Hot-dip galv is arranged on request for outdoor jobs. For inside work, a coat of primer over black does the trick.
- Mild steel — black hot-rolled
- DuraGal in-line galvanised angle (common sizes)
- Hot-dipped galvanised (on request)
- Primed
All angle to AS/NZS 3679.1, Grade 300.
Cut to length & fabricated on site.
We cut Angle to your sizes on the bandsaw and fabricate from this range in the workshop — drilling, coping, welding, hole-punching. See the fabrication service →
FAQ
Common questions on Angle.
- What grade is your angle iron?
- Grade 300 mild steel to AS/NZS 3679.1 — the standard hot-rolled structural grade. Weldable, drillable, paints up fine.
- What's the difference between equal and unequal angle?
- Equal angle has both legs the same width (e.g. 50×50). Unequal angle has different leg lengths (e.g. 75×50). Use unequal when one side needs more depth — common for lintels and shelf supports.
- Can you galvanise angle?
- Yes — we send fabricated angle work out for hot-dip galv. Plan the holes and welds first so you're not re-drilling after the dip.
- Do you sell off-cuts of angle?
- Always. The off-cut bin at the yard is full of short lengths — bargain prices, cash and carry.
- Do you deliver steel angle Gold Coast wide?
- Yes — Gold Coast, Tweed Heads and Northern NSW delivery on the crane truck or standard tray, plus counter pickup from Burleigh Heads.
- What's the longest angle you can supply?
- Standard lengths are 6.0m and 9.0m. Cut-to-length is standard service — send a cut list and we'll have it ready.
- Can you fabricate brackets from angle?
- Yes — drilling, coping, welding and short-run bracket work is bread-and-butter for the fab shop. Send a sketch with hole positions.
- How much does steel angle cost?
- Price depends on leg size, thickness and length. Send the spec and we'll quote same day.
Useful next steps
More on Angle & related work.
- Full steel size reference — every section we stock in one printable page.
- Fabrication & cut-to-length services — what we can do for you in the workshop.
- Visit the Burleigh Heads yard — directions, hours and what to expect.
- Read our guides — choosing finishes, planning fabrication and more.
Related products
Also in the yard.

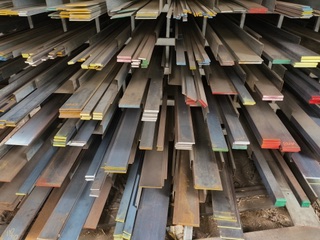

Mild Steel Flat Bar
Rectangular flat — straps, plates, gussets, blade work, fabrication.
View Flat Bar sizes

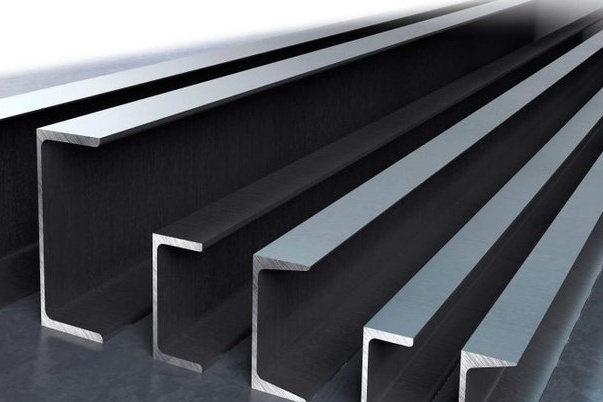

Parallel Flange Channel (PFC)
