PRODUCTS / Rectangular Hollow Sections
Rectangular Hollow Sections (RHS)

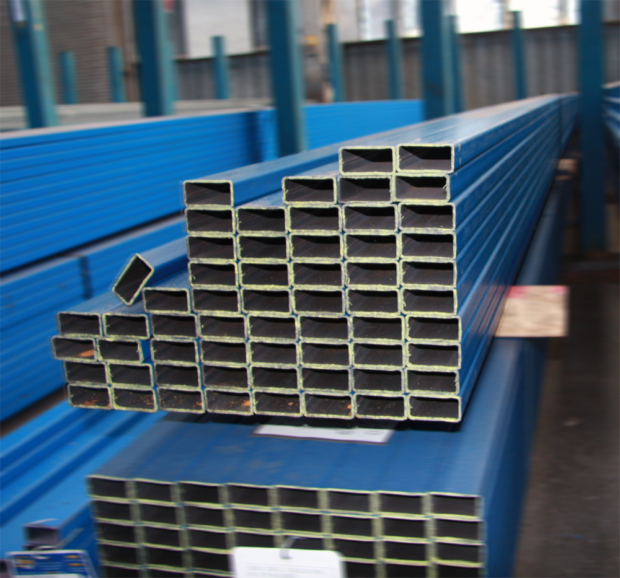

RHS (rectangular hollow section) is rectangular steel tube to AS/NZS 1163, used as lintels, patio beams, gate rails and trailer chassis across the Gold Coast.
Sizes
50×25 to 250×150
Finishes
Black · Galv · DuraGal
Lengths
6.5m or 8.0m
Cut to length
On request
RHS is SHS's tall cousin — rectangular tube that's stiff one way and slim the other. That makes it perfect for jobs where you need a beam to carry a load but don't want a chunky face on show: door lintels, gate rails, trailer chassis rails, headers over open spans.
We carry the popular Aussie sizes in black mild steel and galvanised. The thin sections (50×25, 75×50) get used by fencers and trailer builders every day; the deeper sections (150×100, 200×100) end up in patio beams and small commercial work.
Bring a sketch or a span and we'll work out the right size — no pressure to know it off the top of your head.
Common applications
What it's used for.
- Patio and pergola beams
- Garage door and window lintels
- Gate top and bottom rails
- Trailer chassis rails and crossmembers
- Awning frames
- Shed purlins and bracing
- Sign and gantry frames
Sizes we carry
Standard RHS sizes — pulled straight from the rack.
marks the sizes we move most often. Other sizes available on request.
See full size reference → for every standard section we stock.
Stock varies by size. Call us before you drive to confirm what's on the shelf today.
Standard RHS sizes per AS/NZS 1163, Grade C350L0. Stocked items vary — call us for what's on the shelf.
Marshall Steel — Rectangular Hollow Sections (RHS)
Standard RHS sizes per AS/NZS 1163, Grade C350L0. Stocked items vary — call us for what's on the shelf. · 9 Stevenson Court, Burleigh Heads QLD · 07 5576 6037
| Size (mm) | Wall thickness (mm) | Mass (kg/m) | Standard length (m) | |
|---|---|---|---|---|
| 50 × 20 | 1.6 | 1.68 | 6.5 | |
| 50 × 20 | 2.0 | 2.07 | 6.5 | |
| 50 × 25 | 1.6 | 1.80 | 8.0 | |
| 50 × 25 | 2.0 | 2.23 | 8.0 | |
| 50 × 25 | 2.5 | 2.75 | 8.0 | |
| 50 × 25 | 3.0 | 3.25 | 8.0 | |
| 50 × 30 | 1.6 | 1.93 | 8.0 | |
| 50 × 30 | 2.0 | 2.39 | 8.0 | |
| 50 × 30 | 2.5 | 2.94 | 8.0 | |
| 50 × 30 | 3.0 | 3.49 | 8.0 | |
| 65 × 35 | 1.6 | 2.43 | 8.0 | |
| 65 × 35 | 2.0 | 3.01 | 8.0 | |
| 65 × 35 | 2.5 | 3.73 | 8.0 | |
| 65 × 35 | 3.0 | 4.43 | 8.0 | |
| 75 × 25 | 1.6 | 2.43 | 8.0 | |
| 75 × 25 | 2.0 | 3.01 | 8.0 | |
| 75 × 25 | 2.5 | 3.73 | 8.0 | |
| 75 × 50 | 1.6 | 3.06 | 8.0 | |
| 75 × 50 | 2.0 | 3.80 | 8.0 | |
| 75 × 50 | 2.5 | 4.71 | 8.0 | |
| 75 × 50 | 3.0 | 5.60 | 8.0 | |
| 75 × 50 | 4.0 | 7.35 | 8.0 | |
| 75 × 50 | 5.0 | 9.03 | 8.0 | |
| 75 × 50 | 6.0 | 10.6 | 8.0 | |
| 100 × 50 | 2.0 | 4.58 | 8.0 | |
| 100 × 50 | 2.5 | 5.69 | 8.0 | |
| 100 × 50 | 3.0 | 6.78 | 8.0 | |
| 100 × 50 | 4.0 | 8.92 | 8.0 | |
| 100 × 50 | 5.0 | 11.0 | 8.0 | |
| 100 × 50 | 6.0 | 13.0 | 8.0 | |
| 100 × 75 | 3.0 | 7.96 | 8.0 | |
| 100 × 75 | 4.0 | 10.5 | 8.0 | |
| 100 × 75 | 5.0 | 13.0 | 8.0 | |
| 100 × 75 | 6.0 | 15.4 | 8.0 | |
| 125 × 75 | 4.0 | 12.1 | 8.0 | |
| 125 × 75 | 5.0 | 14.9 | 8.0 | |
| 125 × 75 | 6.0 | 17.7 | 8.0 | |
| 125 × 75 | 8.0 | 23.1 | 8.0 | |
| 150 × 50 | 3.0 | 9.14 | 8.0 | |
| 150 × 50 | 4.0 | 12.1 | 8.0 | |
| 150 × 50 | 5.0 | 14.9 | 8.0 | |
| 150 × 50 | 6.0 | 17.7 | 8.0 | |
| 150 × 100 | 4.0 | 15.2 | 8.0 | |
| 150 × 100 | 5.0 | 18.8 | 8.0 | |
| 150 × 100 | 6.0 | 22.4 | 8.0 | |
| 150 × 100 | 8.0 | 29.4 | 8.0 | |
| 150 × 100 | 9.0 | 32.8 | 8.0 | |
| 200 × 100 | 5.0 | 22.8 | 8.0 | |
| 200 × 100 | 6.0 | 27.1 | 8.0 | |
| 200 × 100 | 8.0 | 35.7 | 8.0 | |
| 200 × 100 | 9.0 | 39.8 | 8.0 | |
| 250 × 150 | 6.0 | 36.5 | 8.0 | |
| 250 × 150 | 8.0 | 48.2 | 8.0 | |
| 250 × 150 | 9.0 | 54.0 | 8.0 | |
| 250 × 150 | 10.0 | 59.7 | 8.0 | |
| 250 × 150 | 12.5 | 73.6 | 8.0 |
Additional sizes (e.g. 38x25) available on request — more stocked sizes coming soon.
Got your size? Get a quote.
Quote my RHSYellow-dot sizes are typical stock at the Burleigh Heads yard. Other sizes available on request — usually same-week.
Steel weight calculator
Roughly how much will your steel weigh? Get a quick estimate before you call.
Cross-section (mm²)
1,136
Mass per metre (kg/m)
8.92
Per piece (kg)
53.51
Total mass (kg)
53.51
Estimate only — based on nominal sizes and 7850 kg/m³ density. Actual mass varies by 2–3% with manufacturing tolerances. Call us for exact spec.
Finishes
How we finish it.
Black is the standard for paint or powder coat. Hot-dip galv is the call for anything that sees weather, salt or ground contact. DuraGal suits jobs that need a tidy off-the-shelf finish.
- Black mild steel
- Hot-dipped galvanised to AS/NZS 4680
- DuraGal in-line galv
- Primed
All RHS to AS/NZS 1163, Grade C350L0 typical.
Cut to length & fabricated on site.
We cut RHS to your sizes on the bandsaw and fabricate from this range in the workshop — drilling, coping, welding, hole-punching. See the fabrication service →
FAQ
Common questions on RHS.
- What's the difference between SHS and RHS?
- SHS is square and equally strong both ways. RHS is rectangular — much stiffer on the long axis, which makes it the right pick for beams and lintels where the load runs one direction.
- Do you stock galvanised RHS?
- Yes — DuraGal in the common fence and trailer sizes, and we arrange hot-dip galv for fabricated jobs.
- Can you weld galvanised RHS?
- Yes, but the zinc fumes are nasty — use ventilation and a fume mask. Touch up welds with cold-galv paint afterwards, or send the whole job for hot-dip after welding.
- What length does RHS come in?
- 8.0m across most sizes off the rack — the exception is 50×20, which comes in 6.5m. We cut to length on request, so if the job wants 3.6m we'll trim it before you load up.
- Do you deliver RHS to the Gold Coast, Tweed Heads and Northern NSW?
- Yes — daily runs across the Gold Coast, Tweed Heads and Northern NSW. Tell us the address and we'll quote freight with the bar.
- What's the longest RHS you can supply?
- Standard rack length is 7.5m. Longer mill lengths to 12m are special order — let us know the size and we'll come back with timing.
- Can you fabricate from RHS?
- Yes — RHS is one of the most common sections through the fab shop. Lintels, gate frames, chassis rails — send a drawing and we'll quote.
- How much does RHS cost?
- Price depends on size, wall thickness, finish and length. Send a list and we'll quote same day.
Useful next steps
More on RHS & related work.
- Full steel size reference — every section we stock in one printable page.
- Fabrication & cut-to-length services — what we can do for you in the workshop.
- Visit the Burleigh Heads yard — directions, hours and what to expect.
- Read our guides — choosing finishes, planning fabrication and more.
Related products
Also in the yard.
Square Hollow Sections (SHS)
Square tube — painted, galvanised and DuraGal. Patios, posts, gates, frames.
View SHS sizes

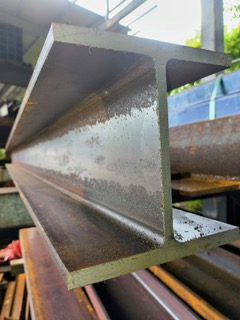

Universal Beams & Columns (UB / UC)
I-section beams and columns — patios, lintels, structural posts, commercial frames.
View UB / UC sizes

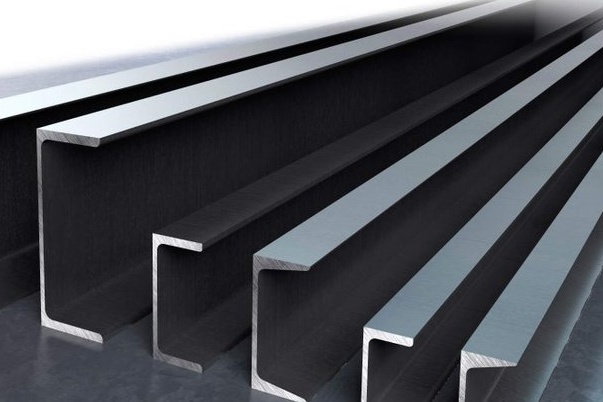

Parallel Flange Channel (PFC)
